I-OFA Series Outdoor High Definition and High Brightness Front Service Fixed SMD LED Display yezimpawu eziholwa ngaphandle nezikhangiso zedijithali

I-Litestar ukukhanya okuphezulu okuphezulu kwe-SMD LED Sign isebenzisa usayizi omkhulu we-chip isibani se-SMD se-LED ngokukhanya okuphezulu (10,000nits), i-SMD LED Display inensiza yangaphambili ye-module ye-LED, isekela insiza ngaphambili nangasemuva. Usayizi wepaneli ungenziwa ngezifiso nganoma yisiphi isidingo semabhodi e-LED. Futhi yonga amandla ezimpawu ezidijithali futhi, ingabonisa ukukhangisa kwekhwalithi ephezulu ye-OOH futhi ingakongela ugesi ngasikhathi sinye.

I-Pixel Pitch:P3.91 / P4.81 / P5 / P6.15 / P6.67 / P8 / P10

Usayizi wePhaneli:960 * 960mm noma usayizi ngokwezifiso

Panel Material:I-Aluminium

Isisindo:36KGS

Ukukhanya: 5,500-10,000izimbali

Iwaranti:3 Iminyaka

Isitifiketi:I-CE / (EMC + LVD) / FCC / ETL / CETL

Izicelo:Ukukhangisa kwangaphandle kwesikrini se-LED, i-Outdoor OOH LED screen, amabhodi wevidiyo angaphandle e-LED, Izimpawu ze-Outdoor LED, Isikrini se-OOH LED sangaphandle, uphawu lwangaphandle lwedijithali, Ibhodi ledijithali yangaphandle, Ibhodi yedijithali yangaphandle

Izintambo eziholelekile ze-Gold wire chip eziholelekile ze-chip ze-SMD zokwenza ukukhanya okuphezulu kwe-10,000nits kwezimpawu ze-LED.

Ukukhanya okuphezulu nokusetshenziswa kwamandla amancane okusindisa amandla uphawu lwe-LED

Ukufinyelela kwangaphambilini kwaholela imojuli yokufakwa okulula nensizakalo

Iphaneli yokufakazela amanzi engu-960 * 960mm noma enye isayizi yephaneli eyenziwe ngezifiso.

Iphaneli ye-LED inesikhala esikhulu nabalandeli bokushabalalisa okungcono kokushisa.

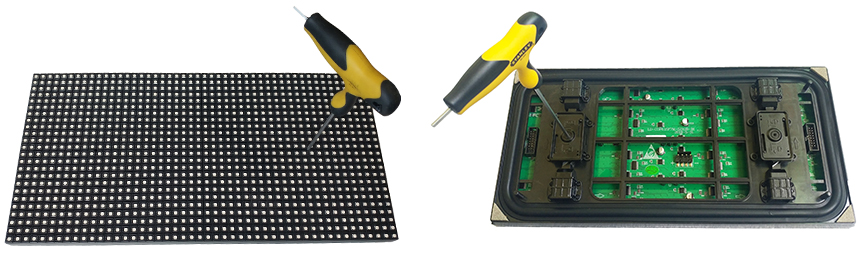

High brightness SMD can reach 10,000izimbali        Front serviceable led tile                                          Water proof LED Panel

Amamojula we-320 * 160mm noma ama-320 * 320mm ngaphambili kwe-LED. Iba ne-P10mm, p16mm ne-P20mm ngezinketho

Uhlangothi lwangemuva lwe-Module lungafakwa ne-silicon ye-anti-dust, anti-humidity kanye ne-anti-corrosion

Iphrojekthi efakwe eduze nolwandle ingagcoba uhlangothi lwangemuva kwamathayili wensizakalo yangaphambili ukuze kuvikelwe kangcono

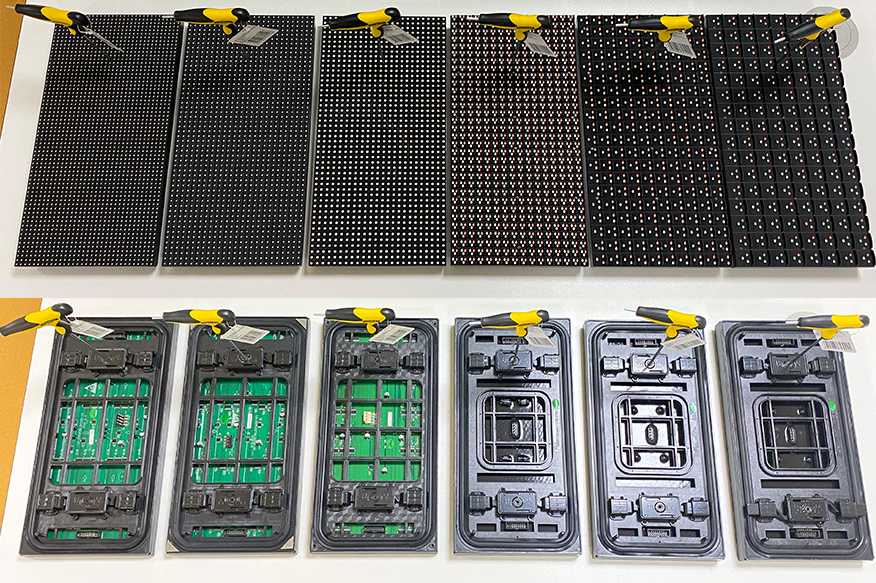

250 * 250mm ngaphambili service module for ongaphandle P3.91 & P4.81

Ngokukhanya okuphezulu nencazelo ephezulu yezimpawu eziholelwe ngaphandle

Amathayili wokulungisa ngaphambili we-320X160mm we-P5 / P6.15 / P6.67 yangaphandle

Amathayili wokufinyelela wangaphambili we-320X320mm we-P6.67 / P8 / P10 yangaphandle.

Ingemuva le-silicon enamathela nge-anti-himidity, anti-corrosion kanye ne-anti-dust. Vikela imodyuli eholelwe kangcono

Amamojula we-LED angaphambi kokusebenziseka anabo bonke osayizi namaphikseli wezinketho, yenza osayizi bezimpawu zakho eziholwa baguquke kalula.

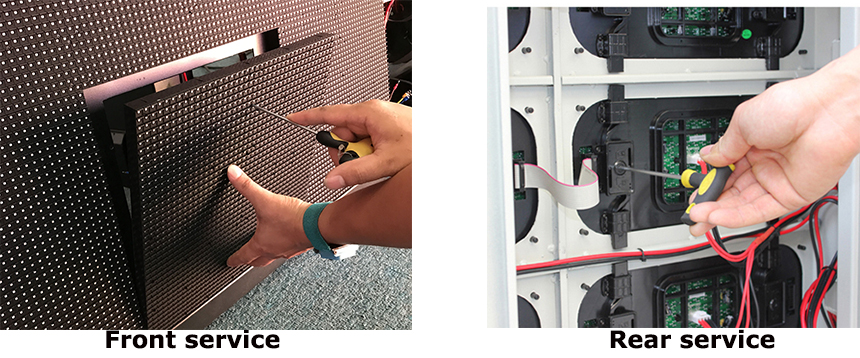

Ukulungiswa kwangaphambili kwamathayili aholelekile asekela insiza yangaphambili nangemuva. Kulula ukufakwa nokunakekelwa. Khipha amathayili aholelekile ngemizuzwana

Izimpawu eziholele ekugcinweni kwesikhala sangaphambili, ngaphandle kwamathayili aholele ekunakekelweni ngaphambili, amandla kagesi, amakhadi wokulawula nawo angalungiswa kusuka

ngaphambili.Intambo yamandla yangaphakathi enembobo yezindiza yokuxhuma ikhebula ngokushesha phakathi kwamapaneli

         Ikhadi lokulawula ukufinyelela kwangaphambilini namandla kagesi Imbobo yezindiza yekhebula lamandla

Isibonakaliso se-LED nge-Angle Iron singafakwa odongeni noma isisekelo ngqo ngaphandle kwesakhiwo sensimbi

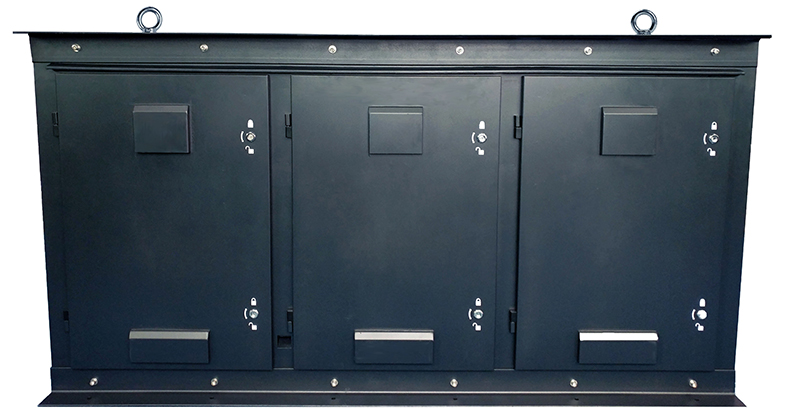

LED panel with hanging ring for easier lifting during installation.

The led signage size can be customized and can be designed with frame.

release ngaphambili repair led tiles in seconds from ngaphambili.

Customized high brightness of SMD2727  can make 10,000nits brightness outdoor LED sign.

Same good brightness as high brightness DIP LED sign.

Have 4G/WIFI wireless remote control LED sign and CAT5 cable control ways for options.

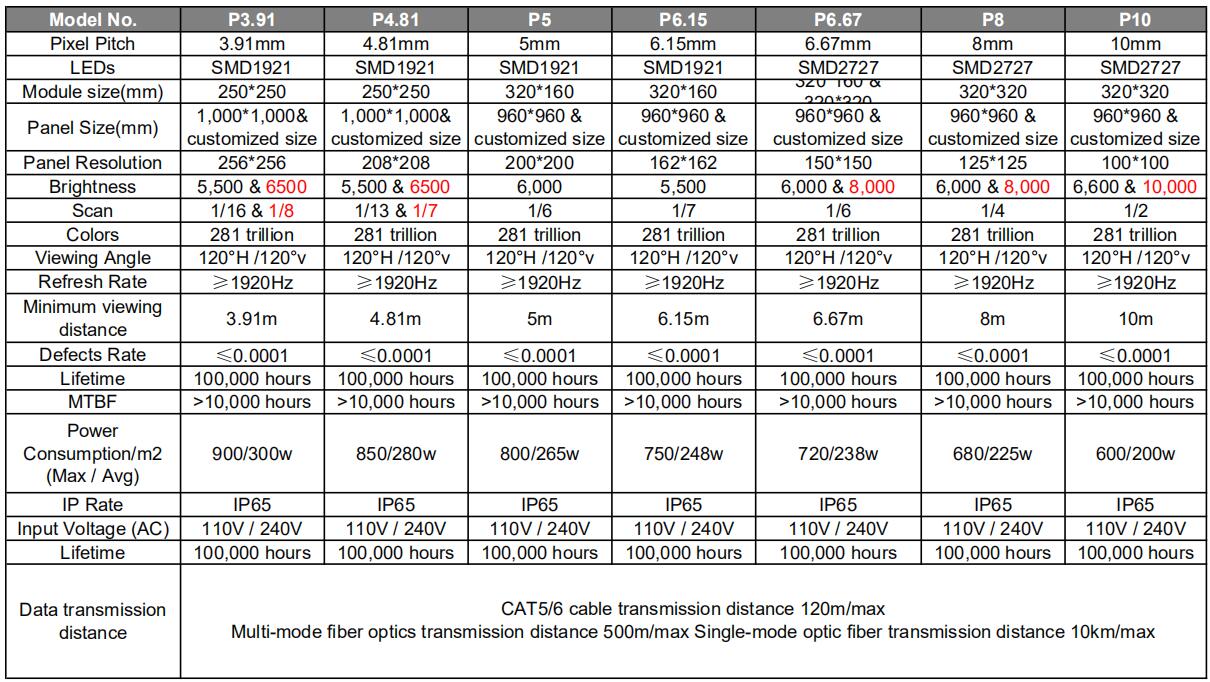

                                                                  Amapharamitha
