I-OFA Series Outdoor ultra high Brightness 10,000nits Enery Saving fixed led display with front service tile front maintenance module for OOH LED Billboards and Outdoor LED Signage

I-OFA Series Outdoor Ultra High Brightness 10, 000nits Energy Saving Fixed DIP LED Display With Front Service Tiles Module Maintenance For OOH LED Billboards and Outdoor LED Signage

I-Litestar Ultra high bright LED Sign isebenzisa isibani esikhulu se-chip isibani se-LED ngokukhanya okuphezulu (10, 000nits), i-LED Display inamathayili wensiza ye-front service, isekela ukulungiswa kwangaphambi nangemuva. Usayizi wekhabethe ungenziwa ngezifiso nganoma yisiphi isidingo sophawu lwe-LED. Iphinde ibe nokonga amandla i-LED billboard, ingaveza ukukhangisa kwedijithali esezingeni eliphakeme futhi ingakongela ugesi ngasikhathi sinye.

I-Pixel Pitch:P10 / P20 / P16

Usayizi wePhaneli:960 * 960mm noma usayizi ngokwezifiso

Panel Material:I-Aluminium

Isisindo:36KGS

Ukukhanya: 10,000izimbali

Iwaranti:3 Iminyaka

Isitifiketi:I-CE / (EMC + LVD) / FCC / ETL / CETL

Izicelo:Ukukhangiswa kwangaphandle kwe-LED Display, i-Outdoor OOH LED Display, Amabhodi we-Outdoor LED, Izimpawu ze-Outdoor LED, Amabhodi we-OOH LED wangaphandle, Izimpawu ze-Outdoor LED, uphawu lwangaphandle lwedijithali, Ibhodi ledijithali yangaphandle, Ibhodi ledijithali yangaphandle njll.

Intambo yegolide enkulu eholele i-chip DIP346 yokwenza ukukhanya kwe-10,000nits ye-LED Sign.

Ukukhanya okuphezulu nokusetshenziswa kwamandla okuncane okonga amandla amabhodi ezikhangiso e-LED

Isondlo sangaphambili nensizakalo yangaphambili I-tile ye-LED yokufakwa nokugcinwa okulula

IKhabinethi enobufakazi bamanzi engu-960 * 960mm noma omunye usayizi wephaneli owenziwe ngokwezifiso.

IKhabhinethi ye-LED inesikhala esikhulu nabalandeli bokushabalalisa ukushisa okungcono.

Amamojula we-320 * 160mm noma ama-320 * 320mm ngaphambili kwe-LED. Iba ne-P10mm, p16mm ne-P20mm ngezinketho

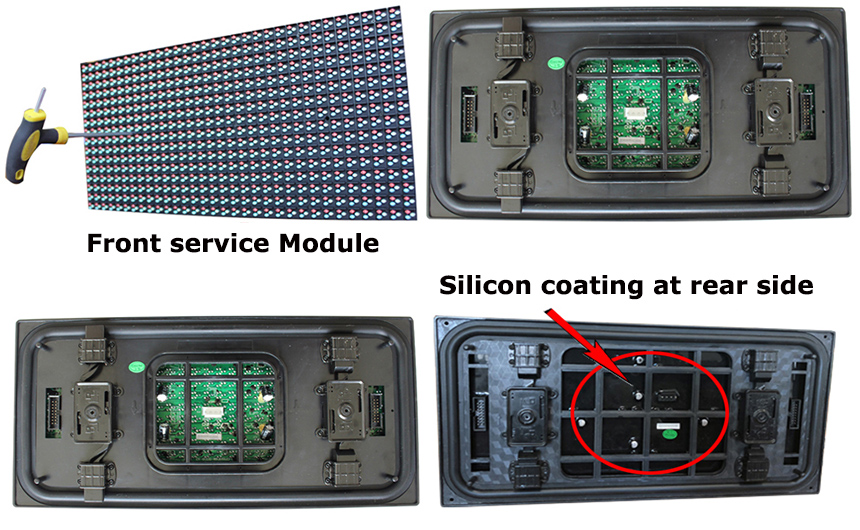

Uhlangothi lwangemuva lwe-Module lungafakwa ne-silicon ye-anti-dust, anti-humidity kanye ne-anti-corrosion

Iphrojekthi efakwe eduze nolwandle ingagcoba uhlangothi lwangemuva kwamathayili wensizakalo yangaphambili ukuze kuvikelwe kangcono

Amathayili wensizakalo aholele phambili asekela ukunakekelwa ngaphambili nangaphambili. Kulula ukufakwa nokunakekelwa.

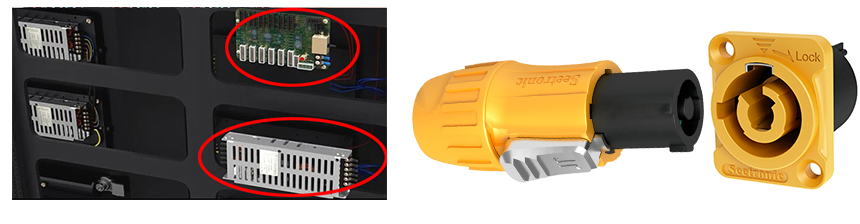

Isibonakaliso esiholwa ngaphambili senkonzo, ngaphandle kwamathayili aholelekile ngaphambili, izimpahla zikagesi, amakhadi wokulawula nawo angasetshenzwa ngaphambili

Intambo yamandla yangaphakathi enembobo yezindiza yokuxhuma ikhebula ngokushesha phakathi kwamakhabethe

         Ikhadi lokulawula ukufinyelela kwangaphambilini namandla kagesi Imbobo yezindiza yekhebula lamandla

Iphaneli ye-LED ene-Angle Iron ingafakwa odongeni noma isisekelo ngqo ngaphandle kwesakhiwo sensimbi

Isibonakaliso se-LED ngendandatho yokulenga yokuphakamisa kalula ngesikhathi sokufakwa.

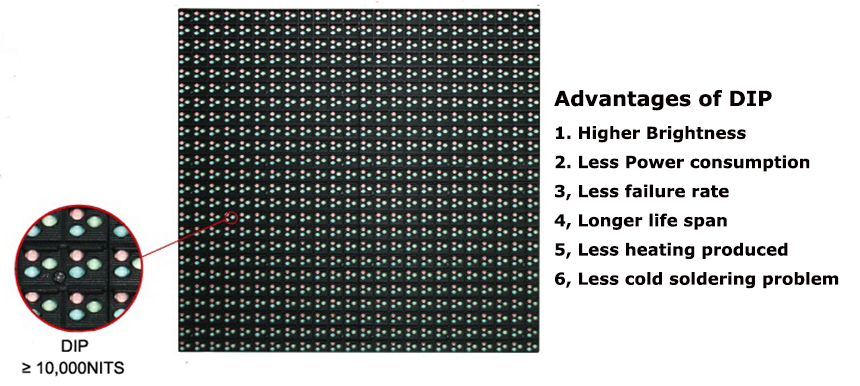

Ubukhulu obukhulu bokukhanya okuphezulu i-DIP346 ukwenza ukukhanya kwe-10,000nits kwama-biilboards e-OOH LED.

Amalambu e-DIP LED anezinzuzo ze-hukukhanya kwe-igh, ukusetshenziswa kwamandla okuncane, isilinganiso sokuhluleka okuncane,

isikhathi eside sempilo, ukushisa okuncane kanye nenkinga yokushisa okubandayo okuncane qhathanisange-SMD LED display

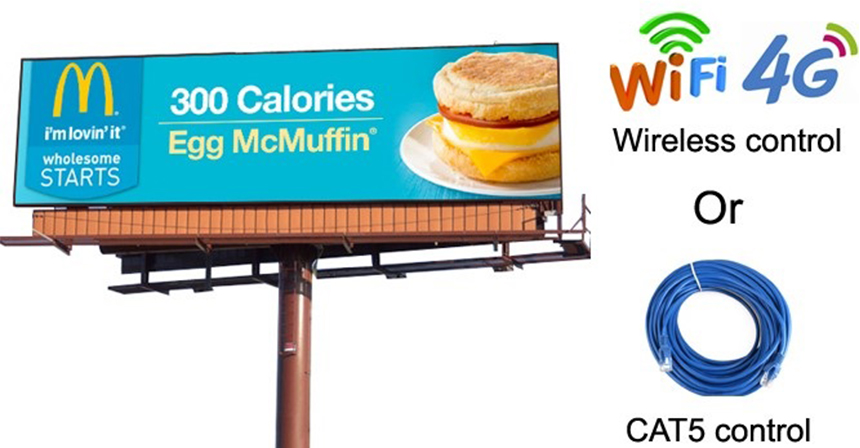

Yiba ne-4G / WIFI engenantambo yesilawuli kude se-LED nezindlela zokulawula ikhebula ze-CAT5 zezinketho.

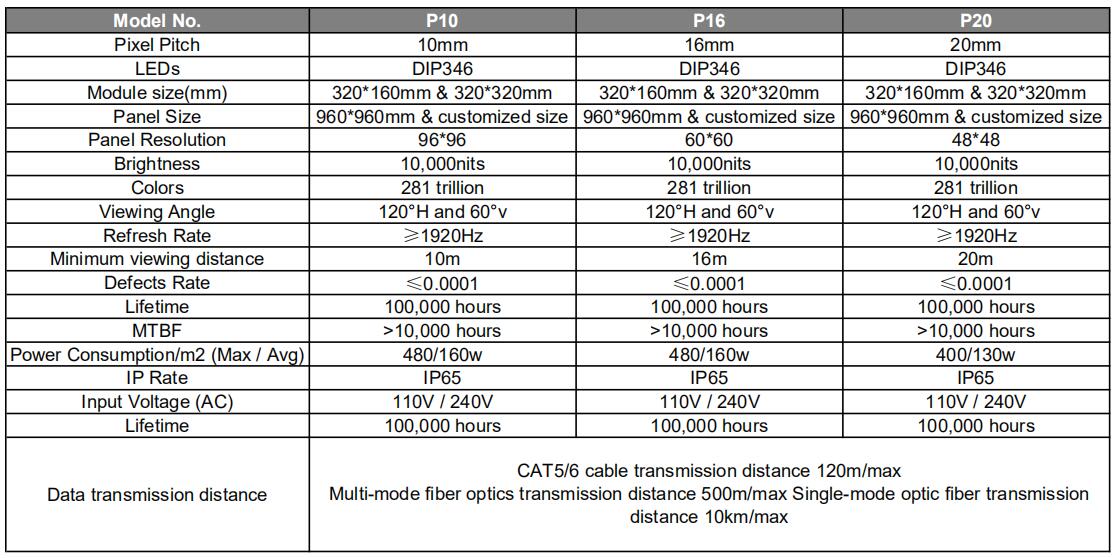

                                                                  Amapharamitha
